2500 mm 98 inch Parallelogram Multi-position M30 Tapping Arm

2500 mm 98 inch Parallelogram Multi-position M30 Tapping Arm

Model NO.T33250030

Electric Motor Power (W): 2000

Max Tapping Speed (r.p.m): 250

Product Description
Specifications
Optional Parts
Brochure

T33250030 electric tapping machine has all nowadays technology in one machine, it is a guarantee in performance, quality and low energy consumption. Its unique technical characteristics are a result of many years of research and development and allow to made different operations with the same machine: tapping, screwing with couple control, Inserting, Reaming and Chamfering.

2500mm (98 inch) working area pluses 10"touch screen and advanced CNC operation system even lubrication all prove the most ideal machine in the world on mild steel, stainless steel and aluminum which is demonstrated the capability of TAIPU.

T33250030 will help user reduce cycle times and are designed, engineered, and built for tapping.

Features of T33250030

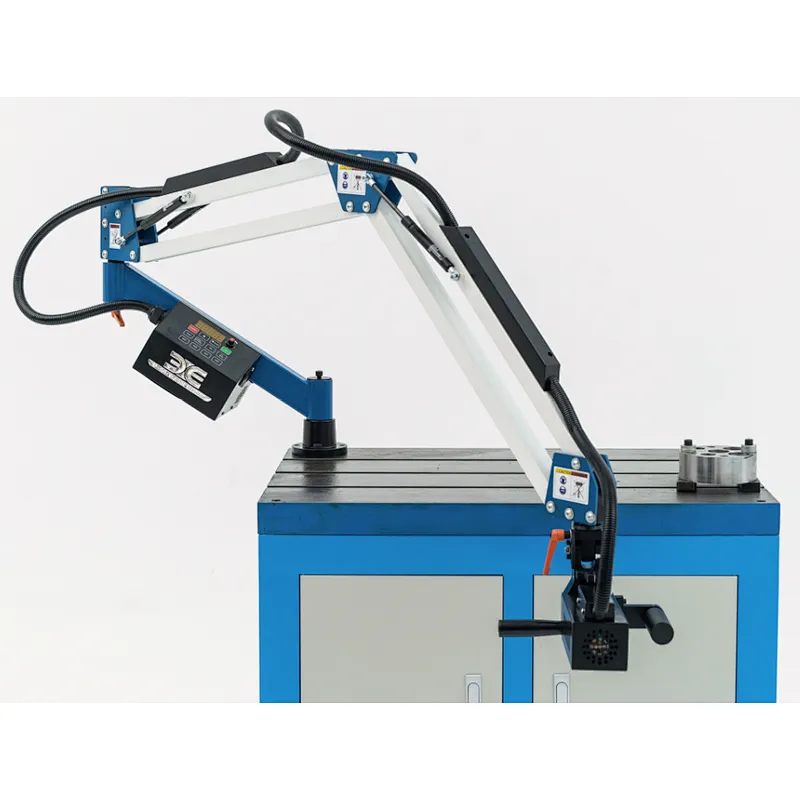

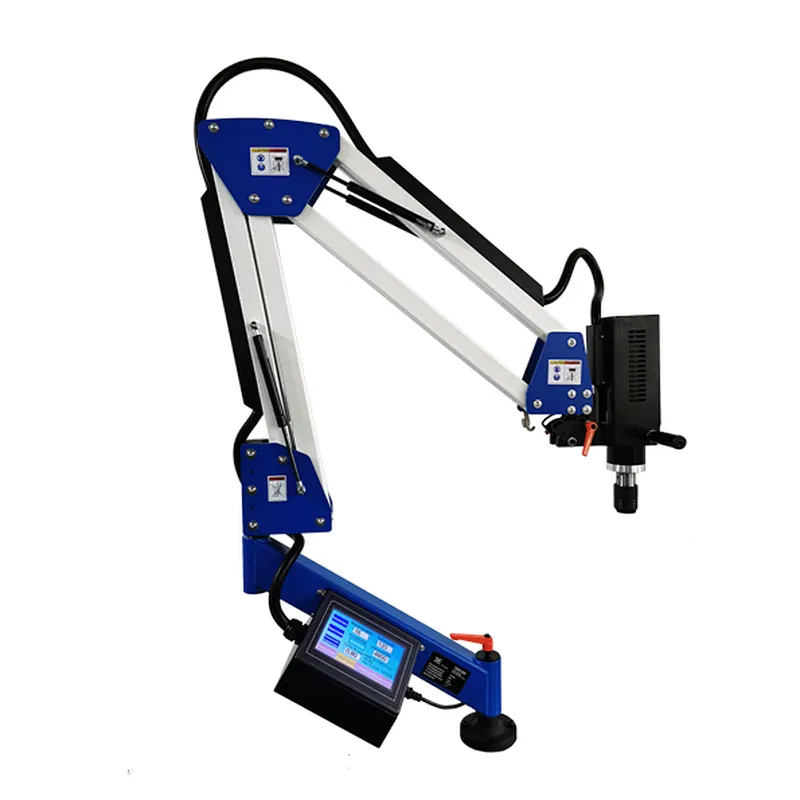

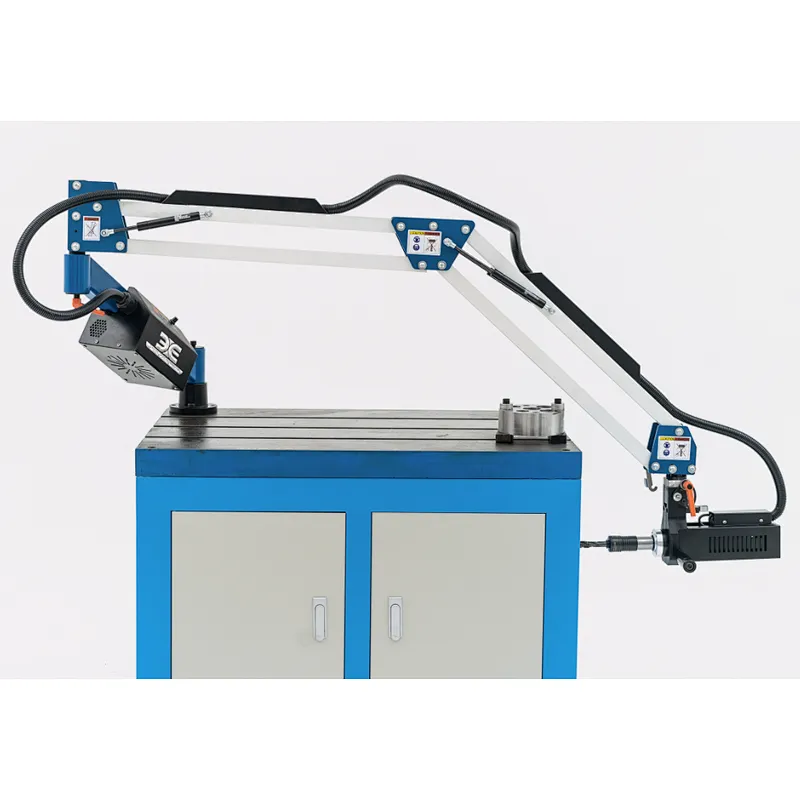

With remarkable universal joint, arm is moving smooth to reach all angles, mechanical U-groove lock the head ensuring the tap stays perpendicular and will result in consistent threads every time.

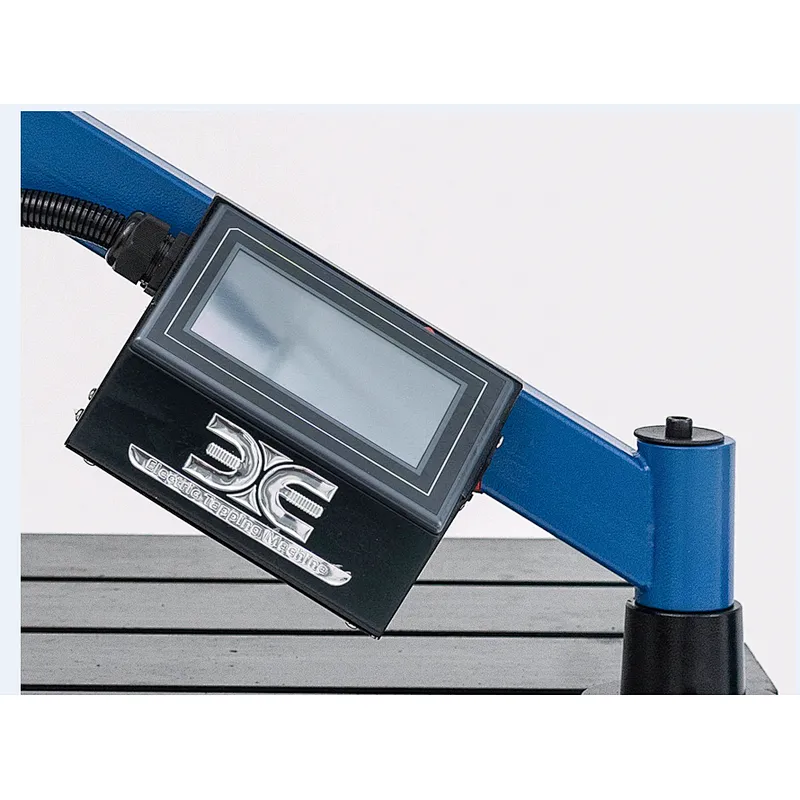

High efficiency to input figure intuitively on 10” touch screen than 4.3” screen, only machine which can change Tap Orientation in Right or Left tapping in system.
User can input suitable torque base on different characters and hardness of material to protect tap,different model of operation chosen: Automatic, Manual and Deep Hole.
