M12(7/16 inch) Automatic Flexarm High-speed Tapping Machine

M12(7/16 inch) Automatic Flexarm High-speed Tapping Machine

Model NO.R32180012 (TP1800-12AU)

Electric Motor Power (W): 1200

Max Tapping Speed (r.p.m): 600

Product Description
Specifications
Optional Parts
Brochure

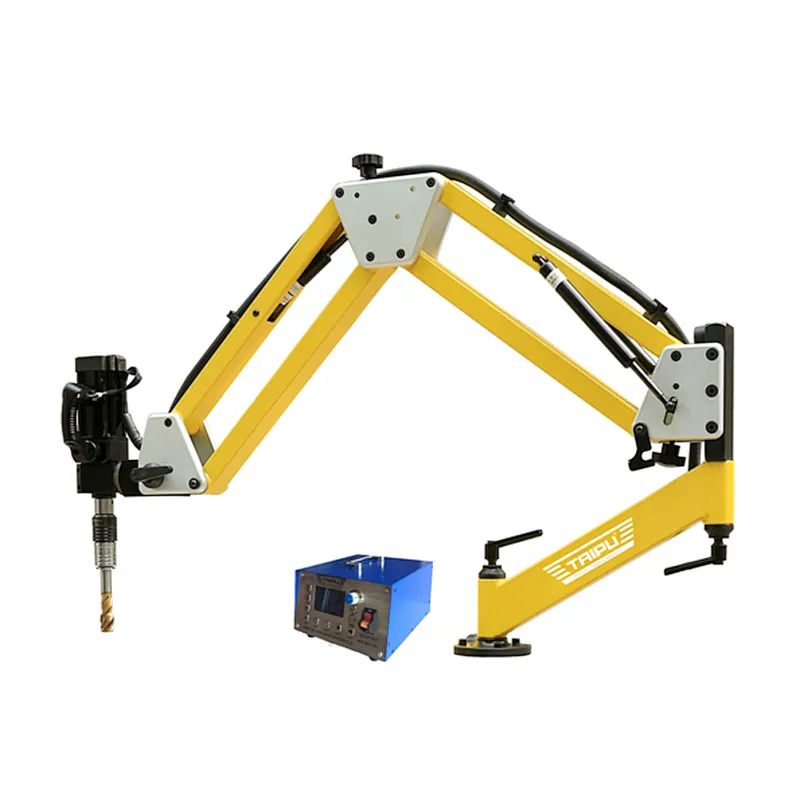

R32180012 is typle arm mounted on a articulated arm which maintains parallel motion, the smooth arm action allows the tap to be brought into position swiftly and easily. Powerful 1.2 kw servo motor with speed 0-600 RPM guarantee the high efficiency. Triple balanced articulated arm made entirely of aluminum, which guarantees a fast and precise hole alignment. R32180012 will prove to be an affordable alternative machine with excellent performance, used servo motors are designed, engineered and built for tapping with high frequency and low noise.

By placing a TAIPU tapping arm next to CNC machine, a significant improvement in productivity can be achieved. While the machining center is drilling holes in the next part, the operator can be tapping the holes in the previous part.

Main Features of R32180012 (TP1800-12AU)

Tapping speed from 0- 600 r.p.m which is large range of adjustment of tapping speed without the use of additional modules
Control box is installed on the arm which is easy to dismount for necessary repair. The structure design makes maintain easily and simply.
Unique R & D control system includes depth setting，speed and imitation mode which is user-friendly operated without experience.

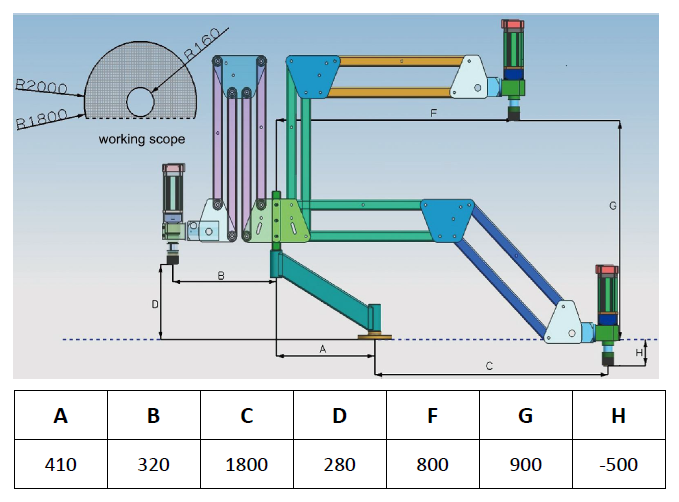

Wide working scope- Allows you to work comfortable with a ray of 1800 mm.

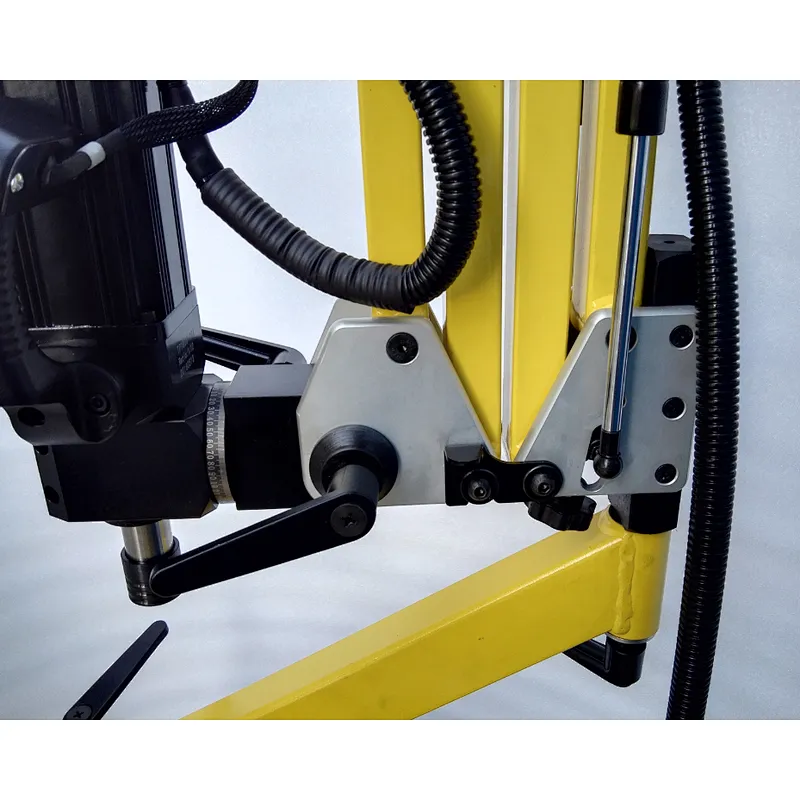

Rotational head to thread in any angle which is really universal tapping.
Quick-change collets 3 to 5 seconds, to reduce work time and increase productivity
