M3 Macro Reduce Tap Breakage Electric Touch Panel Tapping Arm from China Manufacturer

M3 Macro Reduce Tap Breakage Electric Touch Panel Tapping Arm

Model NO.T33200008

Electric Motor Power (W): 800

Max Tapping Speed (r.p.m): 1600

Product Description
Specifications
Optional Parts
Brochure

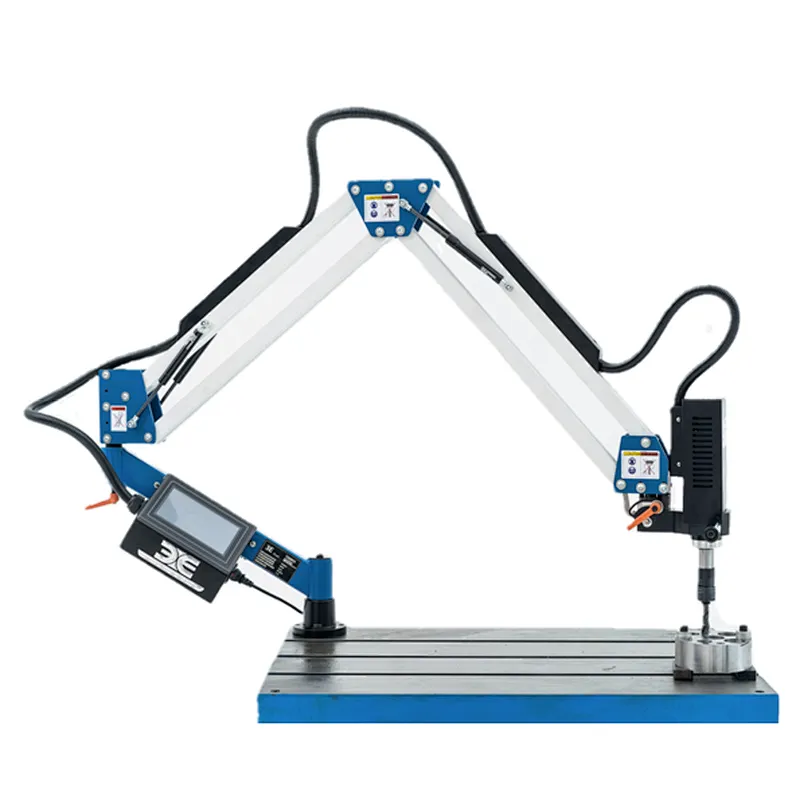

T33200008 is a small machine with wide working range,triple balanced articulated arm made entirely of aluminum covers radius 2000 mm and height 1200 mm which is fit for fixed working parts, L33080008 is also possible to tap holes in large products such as large plates and frames at any angles. By placing a TAIPU T33200008 tapping arm next to your machining center, a significant improvement in productivity can be achieved. While the machining center is drilling holes in the next part, the operator can be tapping the holes in the previous part. Typically, tapping is the slowest and last operation on a machining center. Not only tapping but also Screwing, Inserting, Countersinking and Chamfering all can be satisfied by this small electric tapping arm.

Features of T33200008

Maximum tapping speed from 0-1600 r.p.m which is large range of adjustment of tapping speed without the use of additional modules and cost.

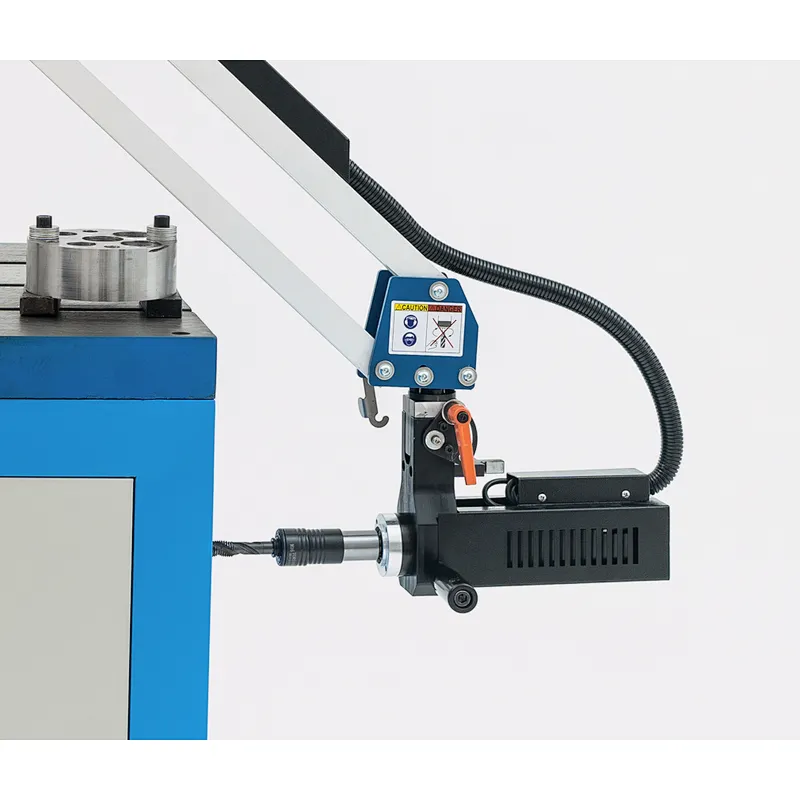

With remarkable universal joint, arm is moving smooth to reach all angles, mechanical U-groove lock the head ensuring the tap stays perpendicular and will result in consistent threads every time.
High efficiency to input figure intuitively on 10” touch screen than 4.3” screen, only machine which can change Tap Orientation in Right or Left tapping in system.
User can input suitable torque base on different characters and hardness of material to protect tap
