Hydraulic tapping arm

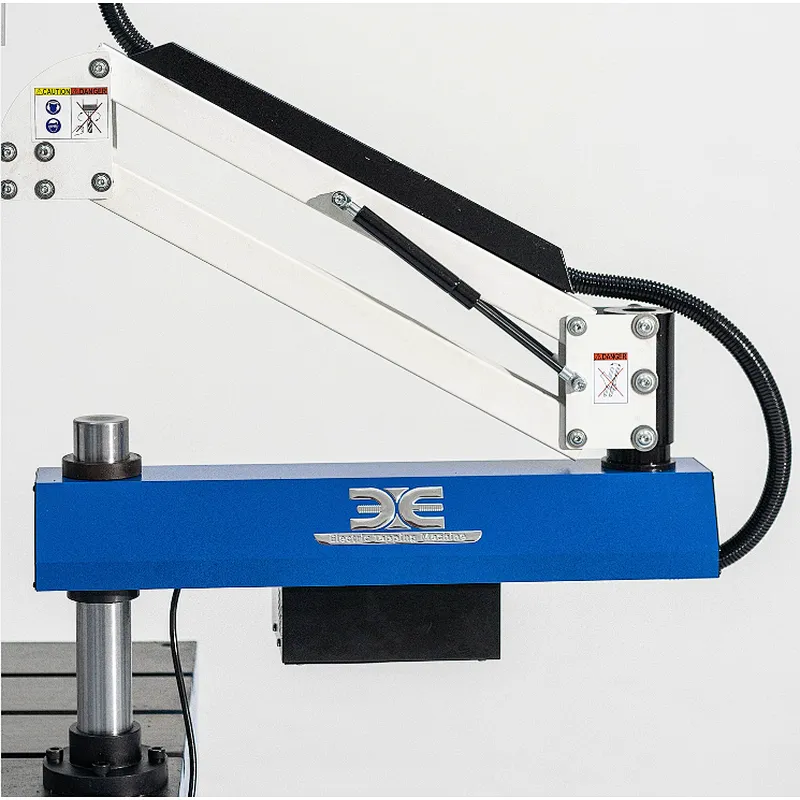

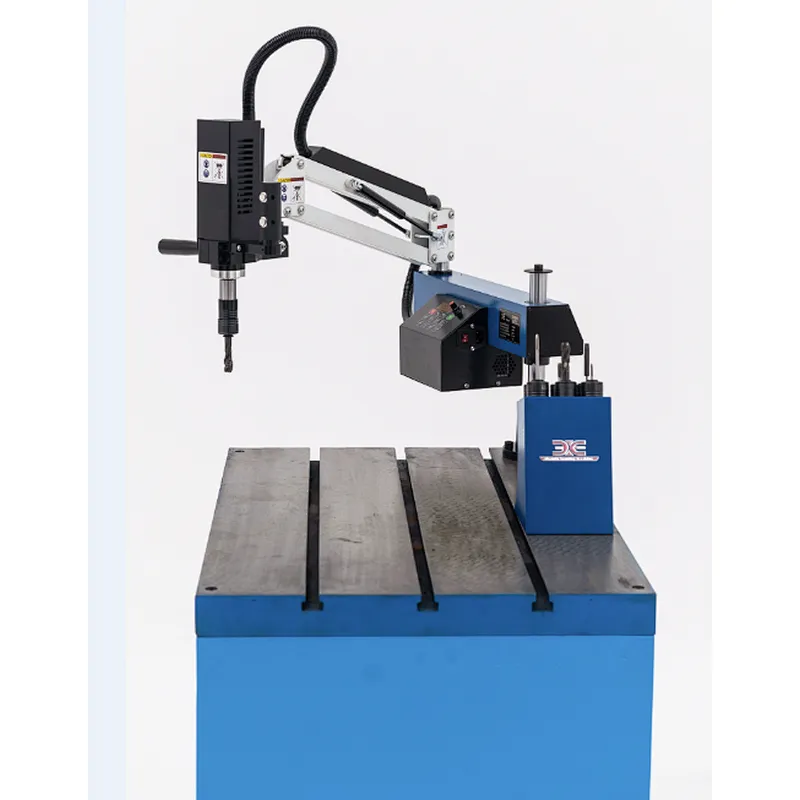

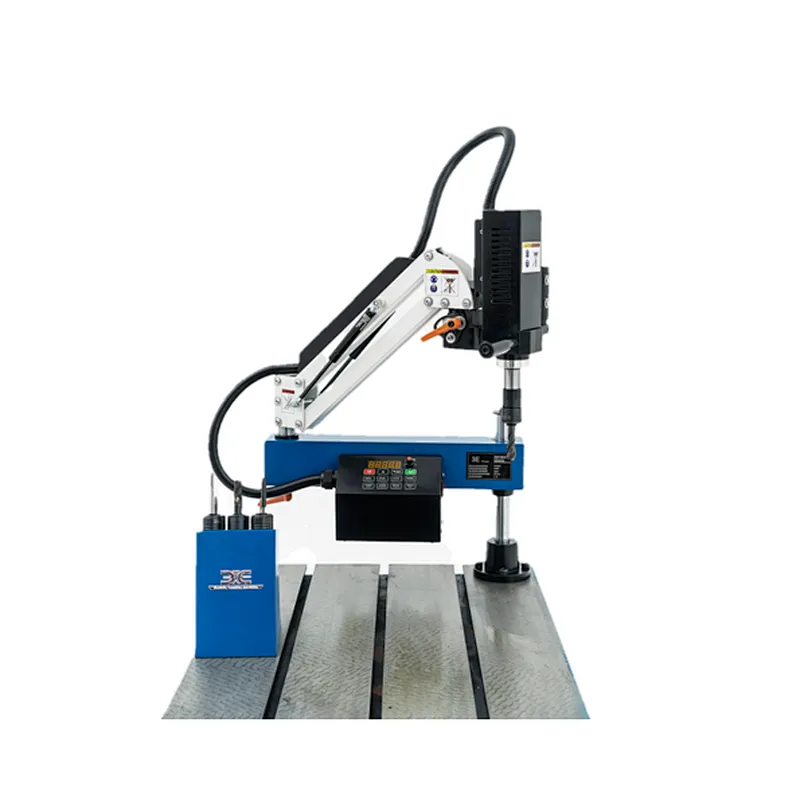

M3 (1/8") Tiny Durable Aluminum NC System Tapping Arm

Model NO.Z32110008 (Z1100-M08 )

Electric Motor Power (W): 800

Max Tapping Speed (r.p.m): 1600

Product Description
Specifications
Optional Parts
Brochure

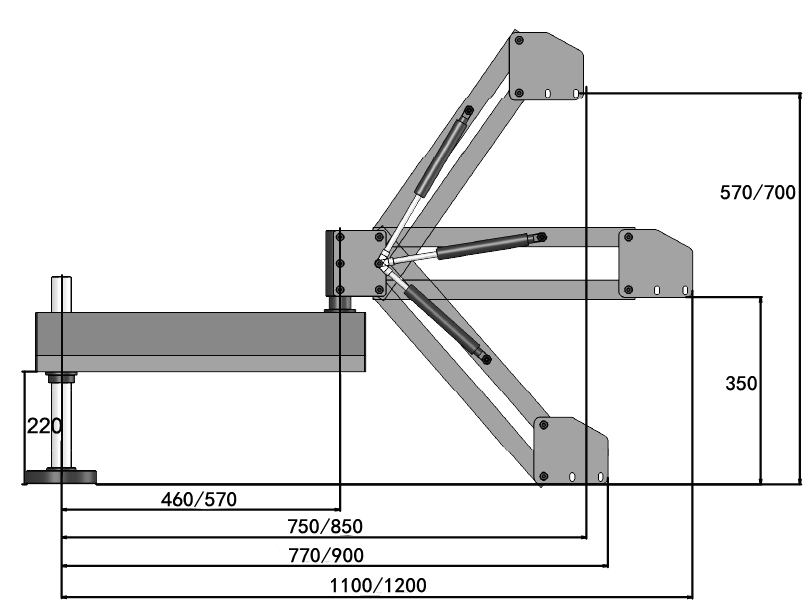

Z32110008 tapping arm is capable of tapping between M3 and M8 threads within a 1100mm work area. With the increase in speed over hand tapping and removing tapping operations from manual and NC machinery, our tapping arm will prove to be an affordable alternative. Highest speed 1600 rpm without additional modular system. It is a new concept in the use of articulated tapping arm, automatic external lubrication installed on the top arm to lubricate running high speed. Tapping small holes can be a challenge, user is guaranteed to break taps whether you tap by hand, with a cordless drill, or in a CNC machine, However, Z32110008 has 3 ways to solve the problem of breaking too many taps and scrapping parts-Torque setting, Torque protection and Torque collets from DoneCNC TAIPU makes tapping easy, and is the best tool when it comes to small hole tapping.

Main Features of Z32110008

Maximum tapping speed from 0-1600 r.p.m which is large range of adjustment of tapping speed without the use of additional modules and cost.

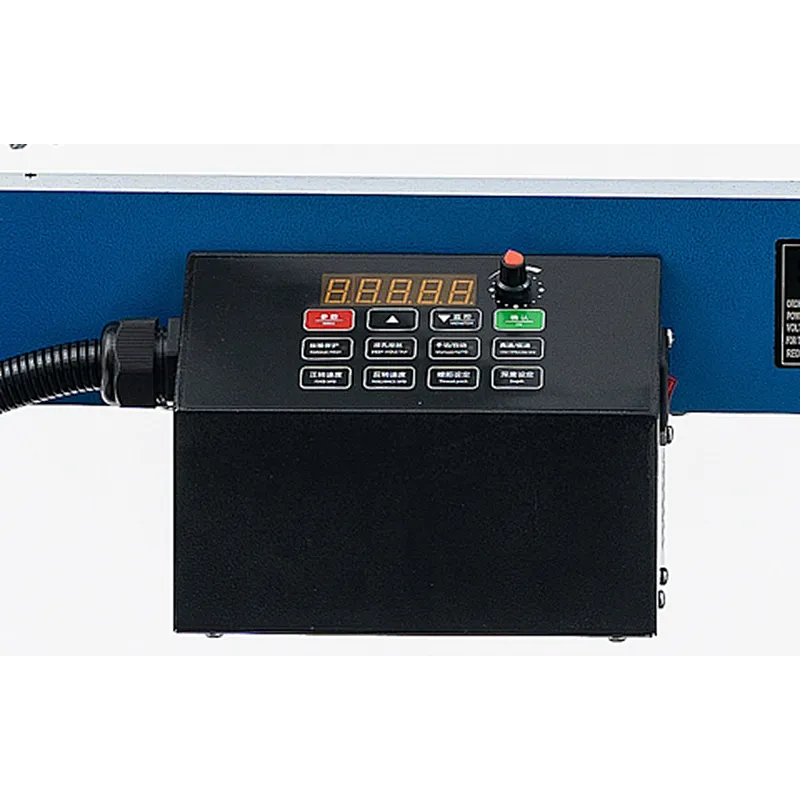

Control box is installed on the arm which is easy to dismount for necessary repair. The structure design makes maintain easily and simply.
To making threading in mild steel, stainless steel and aluminum which is demonstrated the capability of M3 (1/8 inch)
To switch high or low speed by bottom on the panel quickly, it saves every second in your workshop.
