M42 Speed governing Alloy Stainless Steel Tapping Machine

M42 Speed governing Alloy Stainless Steel Tapping Machine

Model NO.R32130042 (TP1300-42AD)

Electric Motor Power (W): 1500

Max Tapping Speed (r.p.m): 30/100

Product Description
Specifications
Optional Parts
Brochure

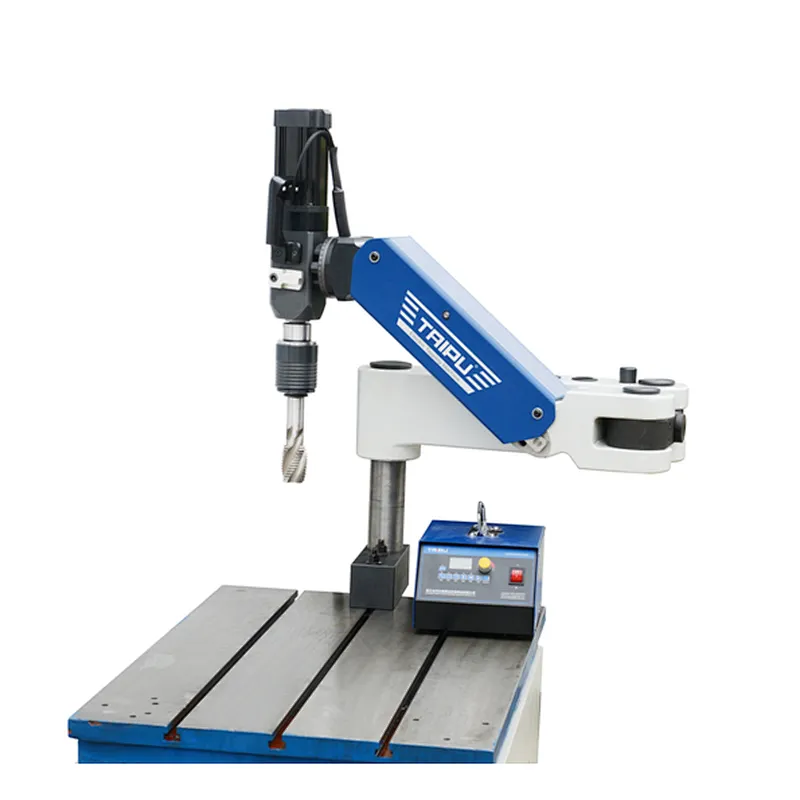

R32130042 (old number TP1300-42) is exercise TAIPU® inventive mind to built with heavy casting iron structure with table attached column to change height 400 mm. It consists of unique 2 speed gear box with the flawless technology, switch over high or low speed by knob, ease of transfer and coupling of the machine from one to another point in the factory, especially for large-size parts with different planes to be mechanized of big demensions.CNC machining should be accessible to any business wanting to increase accuracy, save time, and perfect their craft, regardless of programming knowledge. Through TAIPU, we are making programming resources readily available to all DoneCNC TAIPU customers.

Main Features of R32130042 ( TP1300-42AD）

High torque 600 N.M equipped with 1.8 kw servo motor which is sufficient and stable.

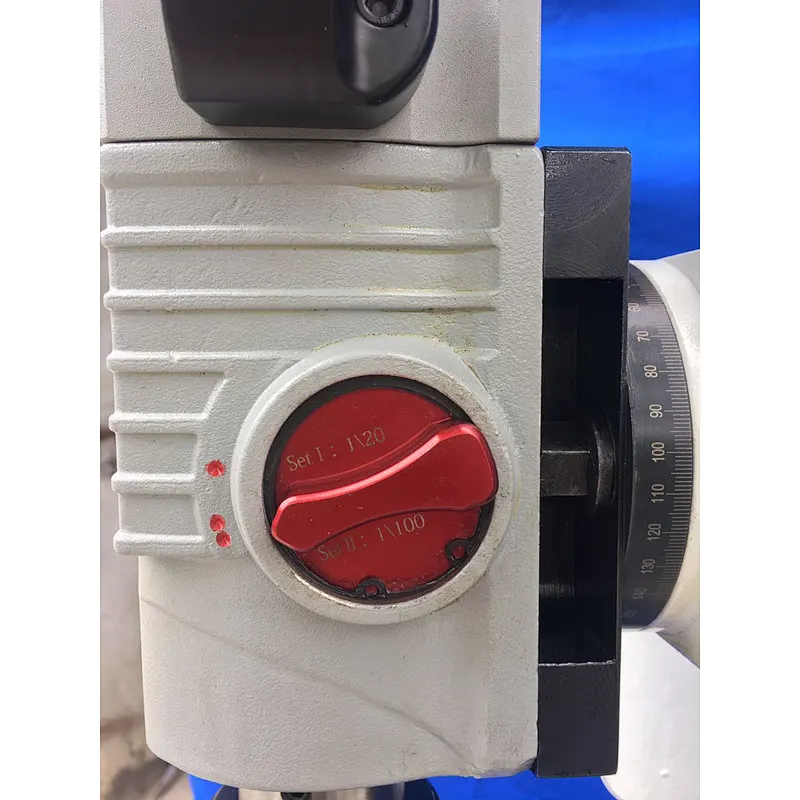

Planetary 2 speed gear for efficient power to set the right torque and RPM for variously material of working piece,high speed 100 rpm is for tapping small hole, low speed 30 rpm is for tapping big hole, suitable speed range will protect the screw tap to be damaged.
Rotational head threads vertically and horizontally by operation handle.
Easily set speed, depth, tooth, torque all in one panel without experience required,
Unique R & D control system makes torque adjustable, with torque chucks and speed setting to protect tap in 3 ways at same time.
Can be widely applied to different industries and materials, especially tapping on heavy material hardness 40 HRC and big work pieces.
