Reaming Countersinking Fastening Tapping Machine from China Manufacturer

Reaming Countersinking Fastening Tapping Machine

Model NO.T32250016

Electric Motor Power (W): 800

Max Tapping Speed (r.p.m): 450

Product Description
Specifications
Optional Parts
Brochure

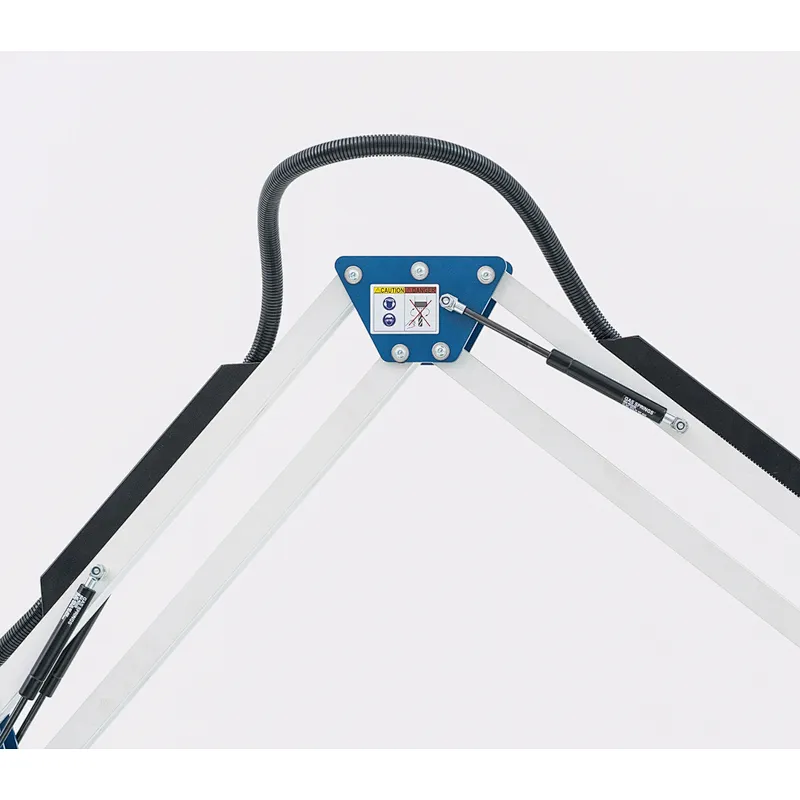

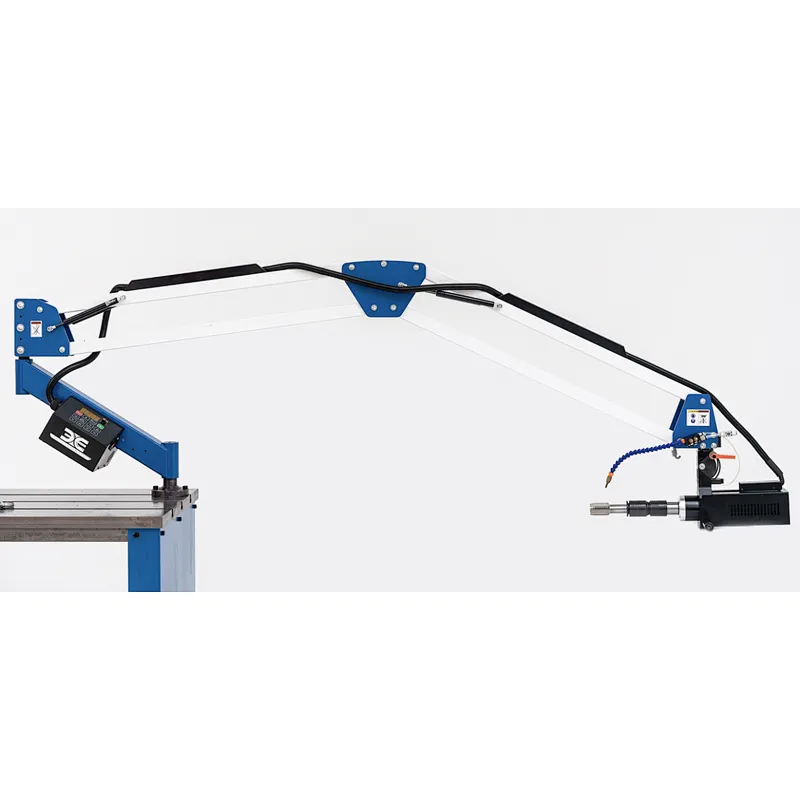

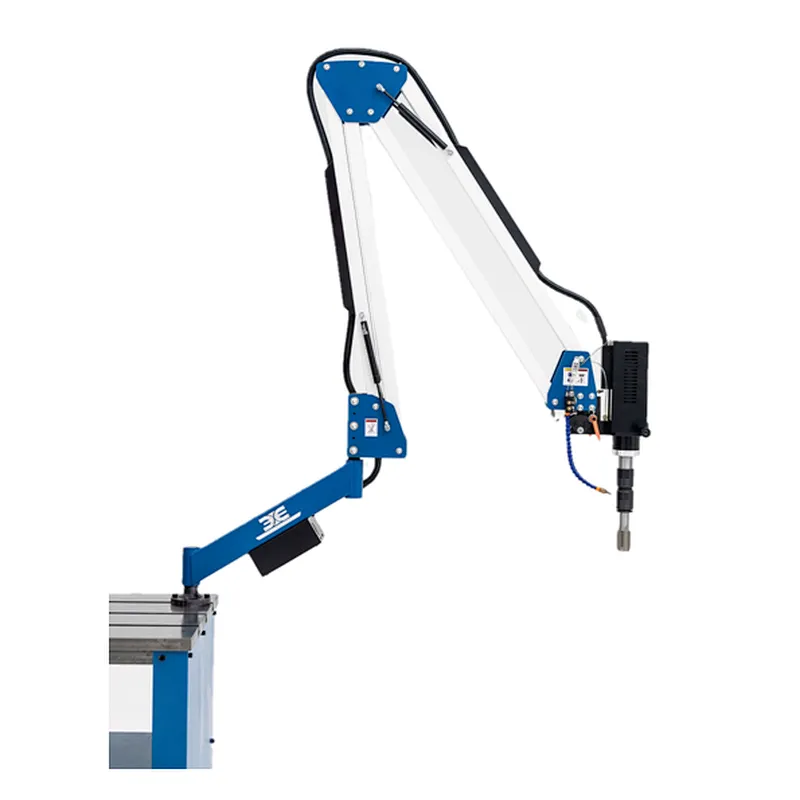

With the advantageously bigger working range of the longer arms reach 2500 mm, the machine consists basically of the following elements: radial arm, universal joint and head, the compressed-air motor is coupled to the arm to keep flexibility and stability. It has completely function not only tapping, drilling but also Reaming, Countersinking, Fastening and Chamfering with optional tools, the most complete function arm in the industry , all can be set on knob key panel user-friendly.

TAIPU T32250016 is for capacity M16 ensure the tap goes all the way through the hole, the arm is also fitted with a depth stop, which will automatically reverse out when it reaches the desired depth. Tapping small holes can be a challenge.

Features of T32250016

With optional U60 universal joint, arm is moving smooth to reach all angles, mechanical U-groove lock the head ensuring the tap stays perpendicular and will result in consistent threads every time.
Variation of the speed rotation according to diameter of hole and counterclockwise maximum speed to fast tool output.

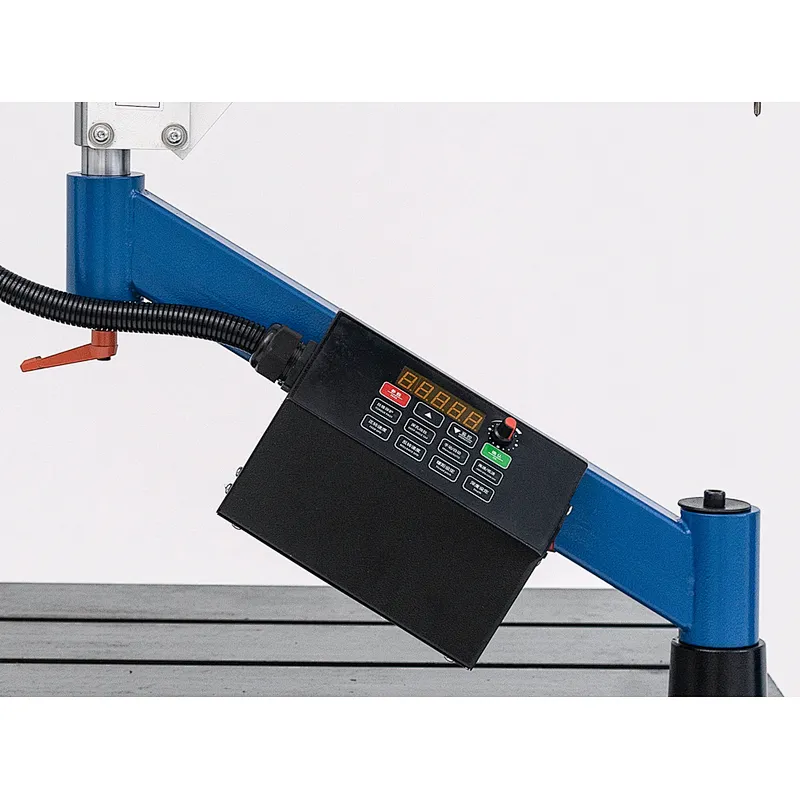

NC system has setting of torque. User sets the torque within scope as hole size and material, the machine will stop or slip when the torque is exceeding for self-protection.
3 ways to solve the problem of breaking too many taps and scrapping parts-Torque setting, Torque protection and Torque collets from T32250016
