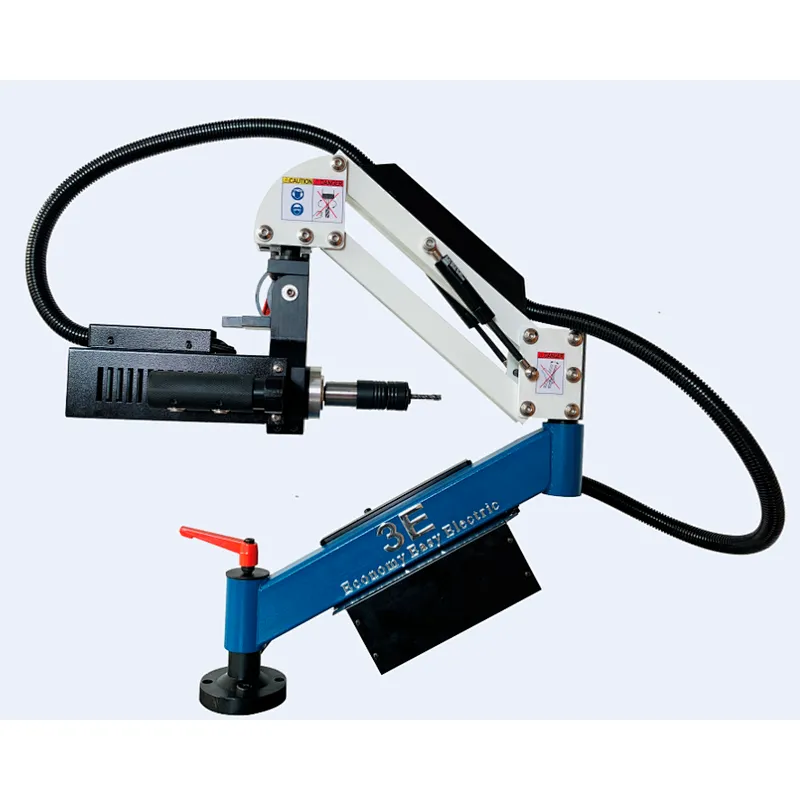

Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Tiny Hole High Speed Electric Tapping Machine
Model NO.L32080008 (L800-M08 )
Electric Motor Power (W): 800
Max Tapping Speed (r.p.m): 1600
  • Product Description
  • Specifications
  • Optional Parts
  • Brochure

L32080008 is a small machine with big use, arm radius 800 mm (31 inch) is fit for fixed working parts, high speed 1600 rpm makes tapping rapidly with spray lubrication to prevent tiny tap M3-M8 broken. With compact design and light wight, L32080008 is also possible to tap holes in large products such as large plates and frames at any angles. By depth setting in system with L32080008 tapping arm, the customer is able to thread to an exact depth quickly and accurately every time especial blind hole .Control box is installed on the arm which is easy to dismount for necessary repair. The structure design makes maintain easily and simply. Monitor is showing instant speed, depth and torque on the board in proceeding to be sure as required.

Main Features of L32080008

  • Maximum tapping speed from 0-1600 r.p.m which is large range of adjustment of tapping speed without the use of additional modules and cost.
  • Unique R & D control system makes torque adjustable, with torque chucks and speed setting, to protect tap in 3 ways at same time.
  • Knob and Bottom are better for worker wearing with glove or hand with oil, also it is stable for long time use.
  • Monitor is showing instant speed, depth and torque on the board in proceeding to be sure as required.

L32080008 (L800-M08 )
L32080008 TAIPU electric tapping machine.pdf
