Tiny Hole High Speed Electric Tapping Machine from China Manufacturer

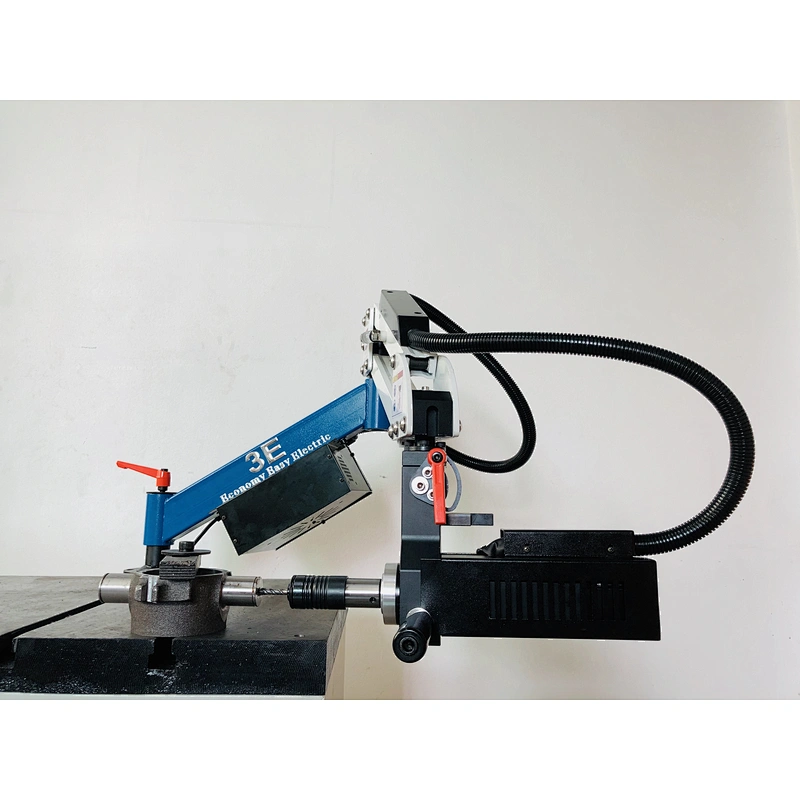

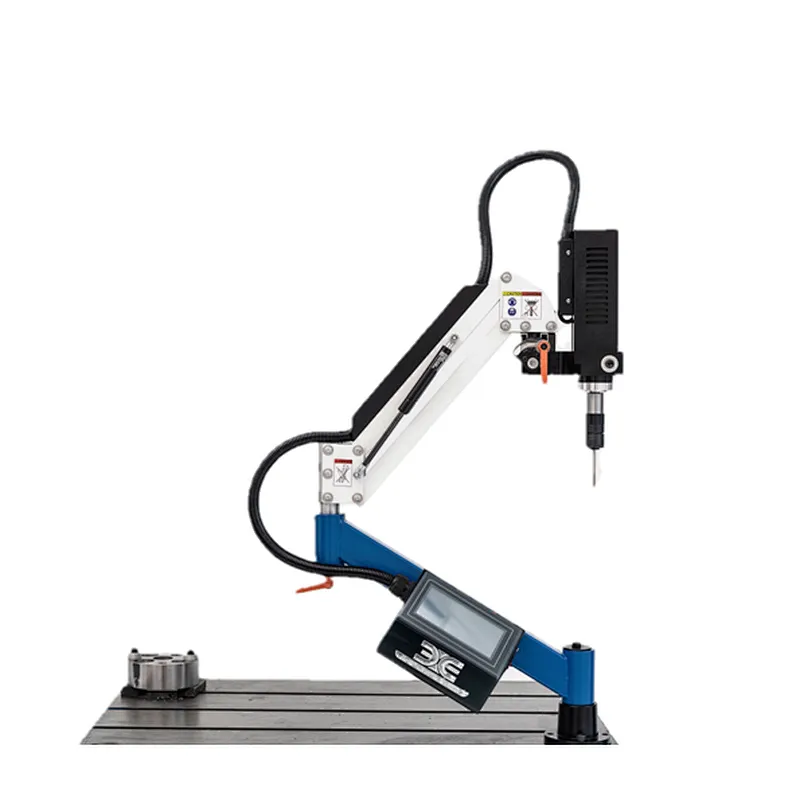

Tiny Hole High Speed Electric Tapping Machine

Model NO.L33080008

Electric Motor Power (W): 800

Max Tapping Speed (r.p.m): 1600

Product Description
Specifications
Optional Parts
Brochure

L33080008 is a small machine with big use, arm radius 800 mm (32 inch) is fit for fixed working parts, high speed 1600 rpm makes tapping rapidly with spray lubrication to prevent tiny tap damage and broken. With PLM-300 magnetic base, L33080008 is also possible to tap holes in large products such as large plates and frames at any angles. By depth setting in system with L33080008 tapping arm, the customer is able to thread to an exact depth quickly and accurately every time especial blind hole. Not only tapping but also Screwing, Inserting, Countersinking and Chamfering all can be satisfied by this small electric tapping arm. TAIPU® unique technical characteristics are a result of many years of research and development and allow to made different operations with the same machine.

Main Features of L33080008

Maximum tapping speed from 0-1600 r.p.m which is large range of adjustment of tapping speed without the use of additional modules and cost.
Unique R & D control system makes torque adjustable, with torque chucks and speed setting, to protect tap in 3 ways at same time.
As new series developed in 2020, it is a condensation of TAIPU15 years know-how becoming the most completely function tapping machine nowadays in the world.
