M24 (1 1/8 ") Chamfering Countersinking Reaming Tapping Arm from China Manufacturer

M24 (1 1/8 ") Chamfering Countersinking Reaming Tapping Arm

Model NO.R32200024 (TP2000-24AU)

Electric Motor Power (W): 1200

Max Tapping Speed (r.p.m): 150

Product Description
Specifications
Optional Parts
Brochure

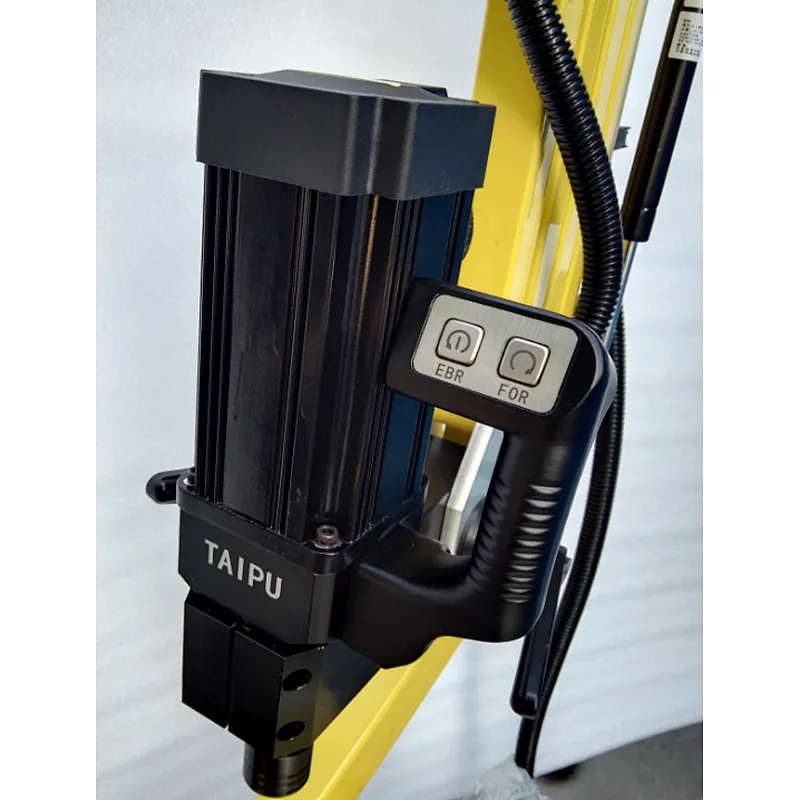

TAIPU® R32200024 (TP2000-24A) has a radial arm being resolvable around 360º in all angle, similar like Flexarm USA and CMA Spain, also perfect combination with CNC turning, milling machine to do metal work in high efficiency and low cost. With the rigidity and precise movement of T type tapping arm, tapped holes are very high quality and typically gage with a smooth insertion of the go gage and little if any entry of the no-go gage. The arm counterbalances the weight of the motor and absorbs torque to reduce fatigue and injury.The motor speed, the tool automatic lubrication and the depth control can be adjusted by means of a display placed on the cover of the electronic board case.

Main Features of R32200024 ( TP2000-24AU)

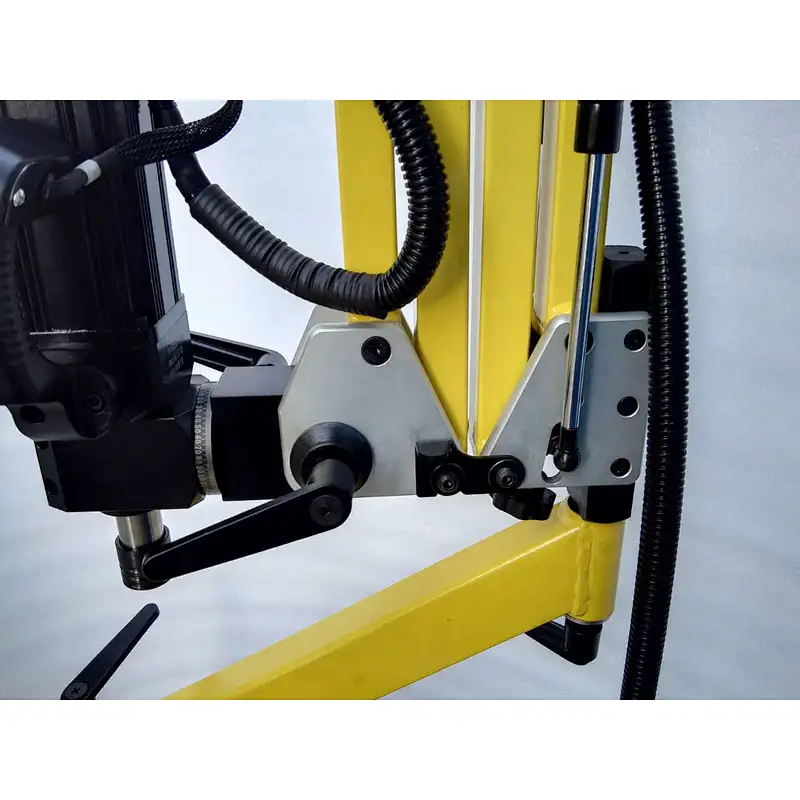

Articulated balanced arm to guarantee high stability and a precise holes alignment.
Safety and adjustable clutch to prevent tap breakage.
Unique R & D control system makes torque adjustable, with torque chucks and speed setting, to protect tap in 3 ways at same time.
Easily set speed, depth, tooth all in one, without experience required
Height adjustable base from 40mm-60mm
Quick-change collets 3 to 5 seconds, to reduce work time and increase productivity
