M30 250rpm Infinitely Variable Speed Touch Screen Tapping from China Manufacturer

M30 250rpm Infinitely Variable Speed Touch Screen Tapping

Model NO.Z33150030

Electric Motor Power (W): 2000

Max Tapping Speed (r.p.m): 250

Product Description
Specifications
Optional Parts
Brochure

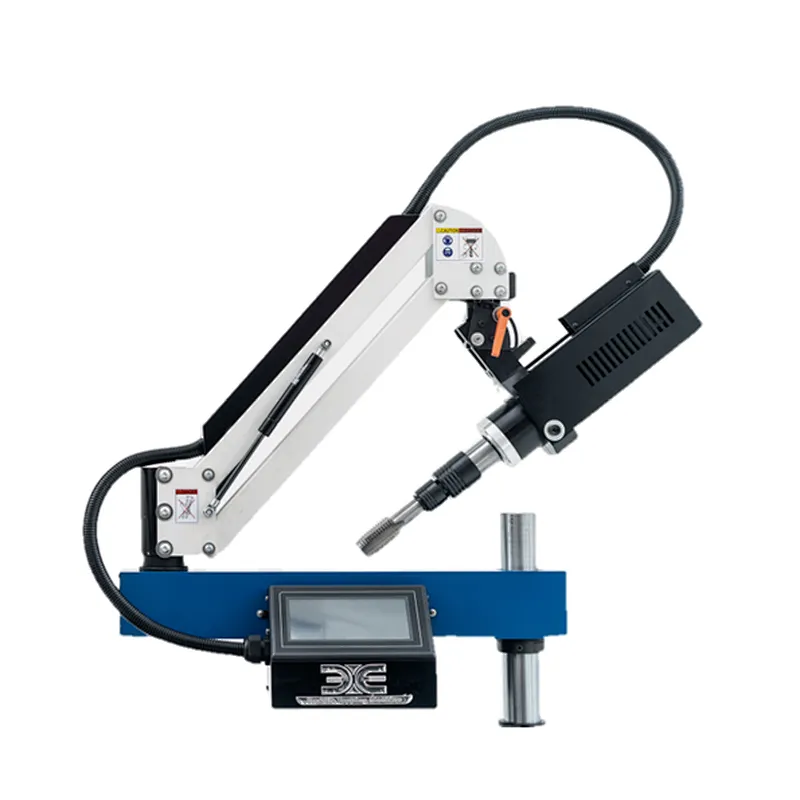

Z33150030 has easily-handled articulated head to tap in vertical and horizontal with completely function not only tapping, drilling but also Reaming, Countersinking, Fastening and Chamfering. Due to the rigidity and precise movement of the TAIPU® Z33150030 ,adjustable torque helps reduce or eliminate tap breakage to save consume of tap, which is 3-4 times more efficient than bringing the work piece to a fixed spindle. By depth setting in system with Z33150030 tapping arm, the customer is able to thread to an exact depth quickly and accurately every time especial blind hole . The ease of set up and operation with its touch screen control and large, open-concept, bed made it convenient in cross-training multiple operators to run the unit. It would also be utilizing in manufacturing multiple other parts as well. Z33150030 is the most popular mode of TAIPU products range which has been proved by worldwide market.

Main Features of Z33150030

Maximum tapping speed from 0-250 r.p.m which is large range of adjustment of tapping speed with power torque 240 Nm.
Besides Manual and Automatic tapping, Deep hole and Consecutive functions are more satisfy multiple and complicated metal working, makes tapping easy and fast.
Thread size has 2 unit of measure, Metric system M or British system inch, is adaptive to all DIN,ISO,JIS and ANSI tap, automatically generate Pitch saving setting time and user-friendly.

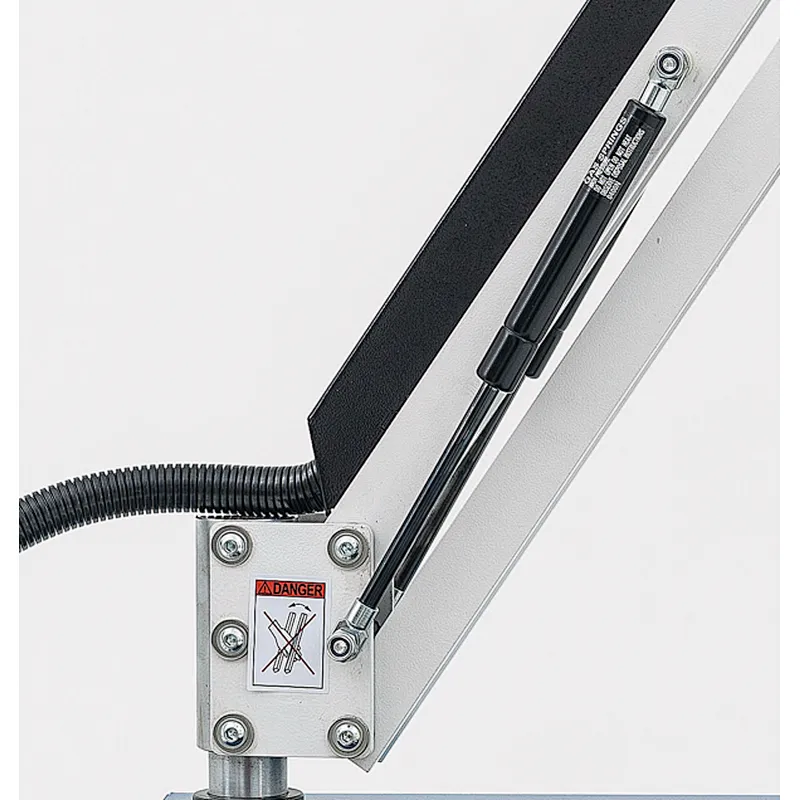

With remarkable universal joint, arm is moving smooth to reach all angles, mechanical U-groove lock the head ensuring the tap stays perpendicular and will result in consistent threads every time.
Touch screen suits trends nowadays in the industry, 16 cm wide 9 cm height (10") is much more convenient for worker than 4.3"screen nowadays in the market.
