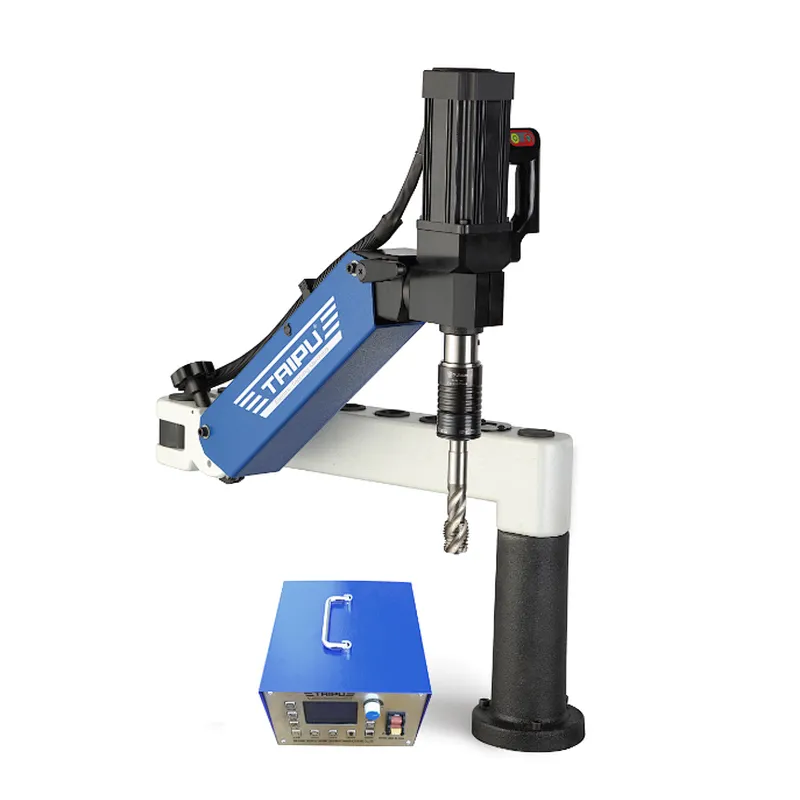

Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Vertical Compact Electric Tapping Machine
Model NO.R32110030 (TP1100-30AU)
Electric Motor Power (W): 1200
Max Tapping Speed (r.p.m): 150
  • Product Description
  • Specifications
  • Optional Parts
  • Brochure

TAIPU® R32110030 (old number TP1100-30) is our hot sales mode in past 8 years, committed to providing the engineering and production industries user with advanced and reliable tapping equipment, with TAIPU® tapping arms, the operator can bring the tap to the work which is 3-4 times more efficient than bringing the work piece to a fixed spindle. R32110030 is with a multi-head to correct any alignment error as the engine block wasn’t mounted on the same table.By utilizing intelligent control system, the proper speed torque and depth can be set precisely according different tap sizes and raw material of parts, easy to improve efficiency and product


With thousands of machines sold and satisfied customers in China and all over the world, TAIPU® is a guarantee in high performance, low energy consumption and attractive price.

Main Features of 32110030 ( TP1100-30AU)

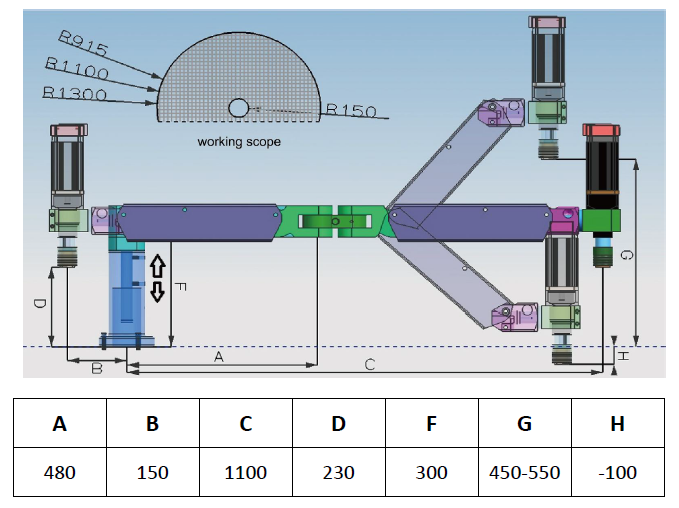

  • Articulated balanced arm to guarantee high stability and a precise holes alignment with wide range of working area.
  • Safety and adjustable clutch adapted and torque setting system are preventing tap breakage.
  • Rotational head to thread in 90°movement both vertical and horizontal tapping
  • Different model of operation can be chosen: automatic, manual and imitated manually
  • Easily set speed, depth, tooth all in one, without experience required
  • Height adjustable base from 40mm-60mm

R32110030 (TP1100-30AU)
TAIPU R32110030 electric threading machine.pdf
