Tap Horizontal

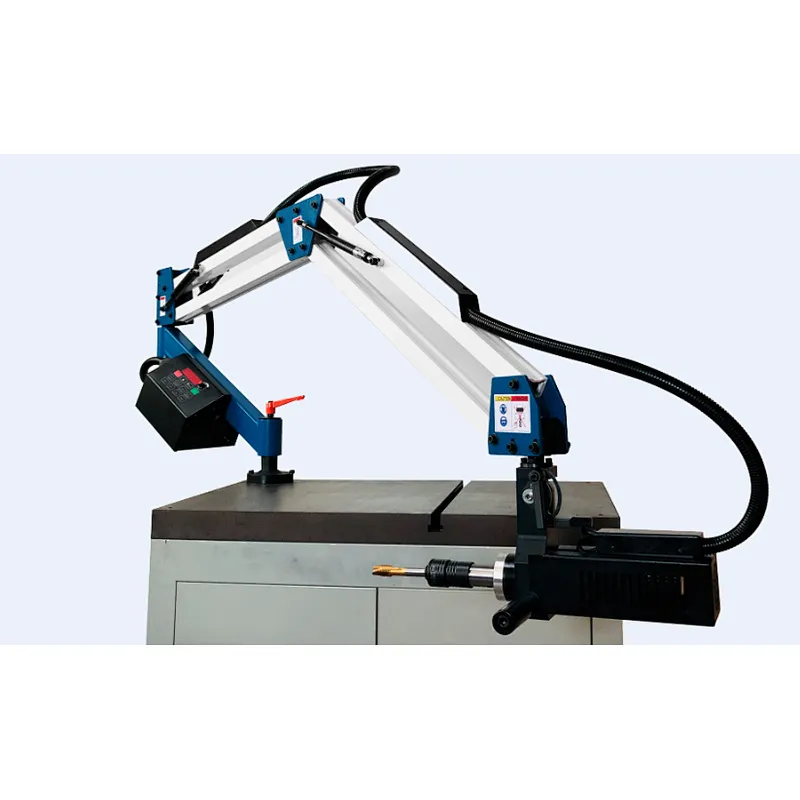

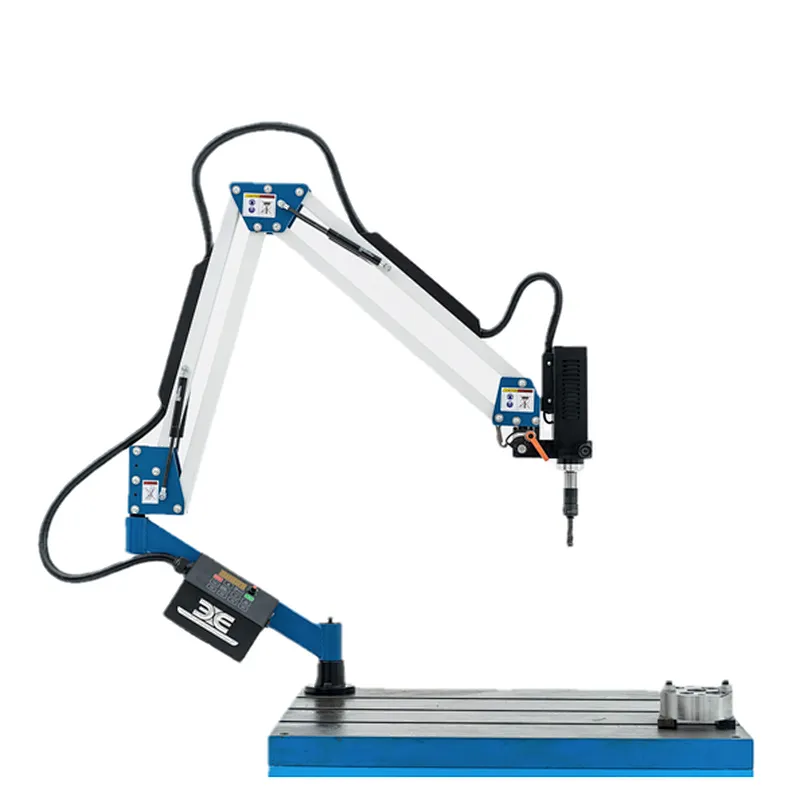

One Year Warranty Life Time Use Flex Rotational Tapping Arm

One Year Warranty Life Time Use Flex Rotational Tapping Arm

Model NO.T32200016 (T2000-M16 )

Electric Motor Power (W): 800

Max Tapping Speed (r.p.m): 450

Product Description
Specifications
Optional Parts
Brochure

TAIPU® T type 2000 arm’s rotational head which allows threading in any position with working radius reach 2000 mm (79 inch) height reach 1550 mm (61 inch). Triple balanced articulated arm made entirely of aluminum, which guarantees a fast and precise hole alignment.

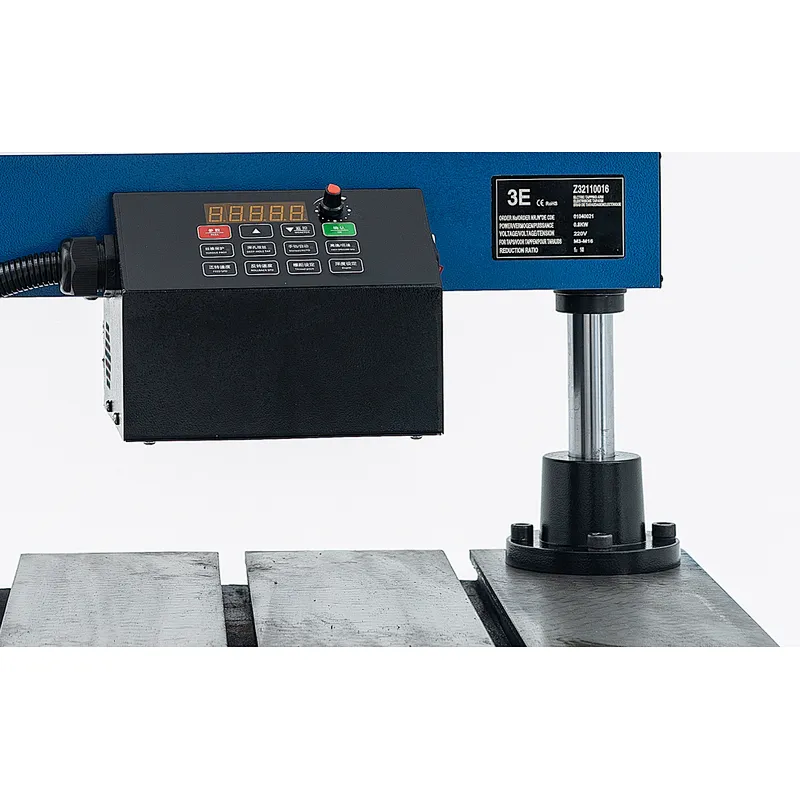

T32200016 is similar like Flexarm USA and CMA Spain which means typical structure in the industry. Also it is the perfect combination with turning, milling machine to do metal work in high efficiency and low cost,Motor supply voltage: 200-240 V. 50/60 Hz. Stepless speed change up to 450 rpm,variation of the speed rotation according to diameter of hole and counterclockwise maximum speed to fast tool output.Control box is installed on the arm which is easy to dismount for necessary repair. The structure design makes maintain easily and simply.

Features of T32200016

Maximum tapping speed from 0-450 r.p.m and powerful 57 Nm which are large range of adjustment of tapping speed without the use of additional modules and cost.
Adjustable torque helps reduce or eliminate tap breackage to save consume of tap
Due to the rigidity and precise movement of T32200016, tapped holes are very high quality less on a No-Go Gage.
Easily PROGRAMMABLE through the Knob Key integrated interface with password protection.
