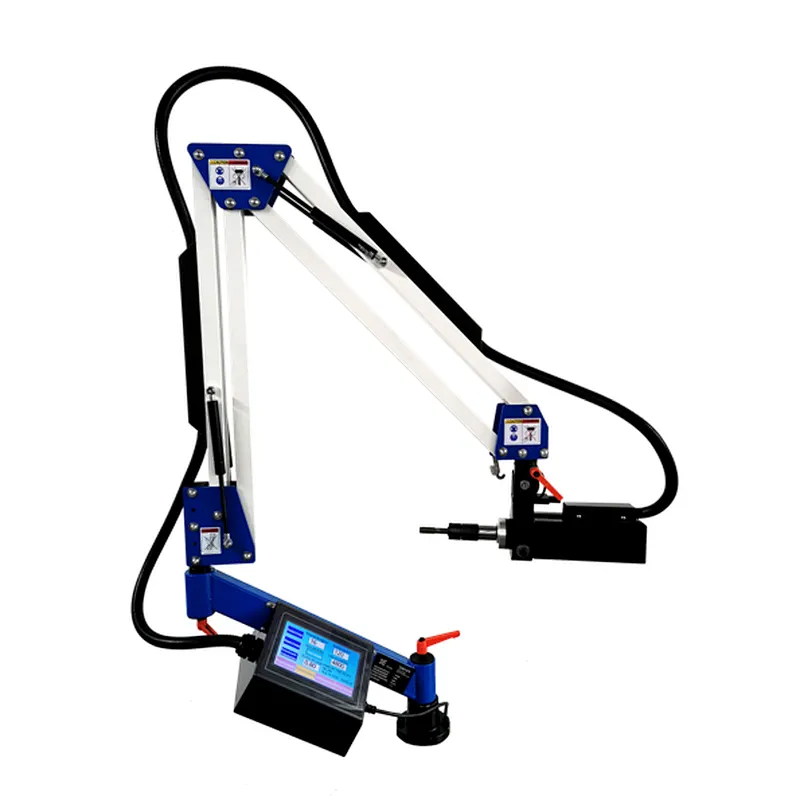

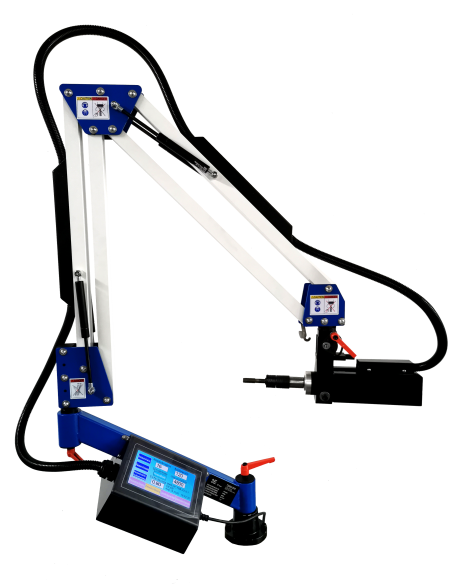

TAIPU® T type 2000 arm’s rotational head which allows threading in any position with working radius reach 2000 mm (78 inch) height reach 1550 mm (60 inch). Triple balanced articulated arm made entirely of aluminum, which guarantees a fast and precise hole alignment. T33200016 is similar like Flexarm USA and CMA Spain which means typical structure in the industry. Also it is the perfect combination with turning, milling machine to do metal work in high efficiency and low cost. By utilizing T33200016 tapping arm, the time it takes to tap each hole is drastically reduced compared to tap them by threading milling machine tap and chamfer and drilling in mild steel, stainless steel and alloy steel.
Features of T33200016
- Maximum tapping speed from 0-450 r.p.m and powerful 57 Nm which are large range of adjustment of tapping speed without the use of additional modules and cost.
- With remarkable universal joint, arm is moving smooth to reach all angles, mechanical U-groove lock the head ensuring the tap stays perpendicular and will result in consistent threads every time.

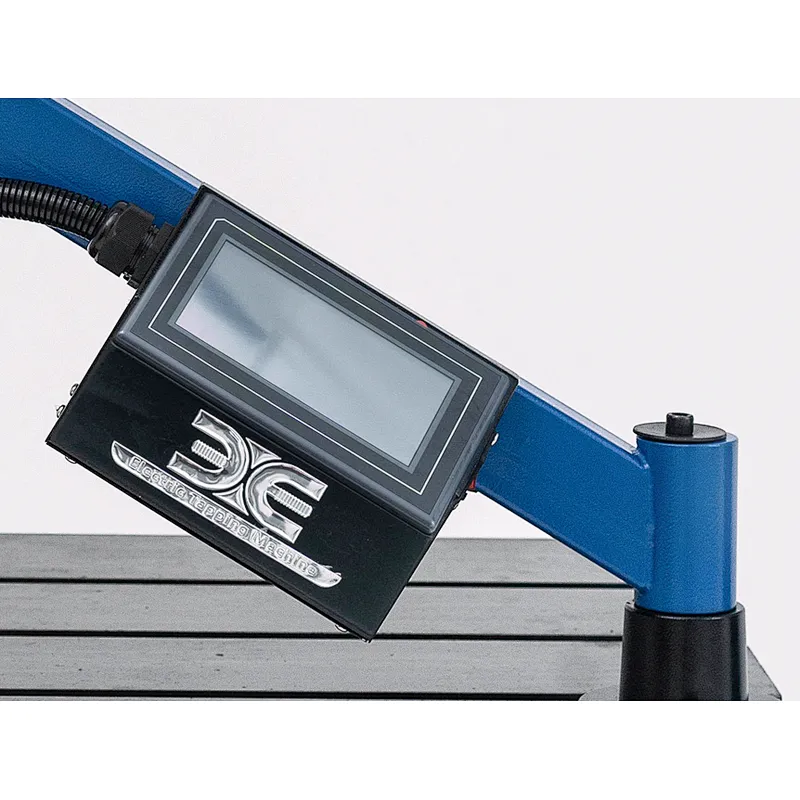

- High efficiency to input figure intuitively on 10” touch screen than 4.3” screen, only machine which can change Tap Orientation in Right or Left tapping in system.
- User can input suitable torque base on different characters and hardness of material to protect tap
