Reaming Countersinking Fastening Helical Insertion Tapping Machine from China Manufacturer

Reaming Countersinking Fastening Helical Insertion Tapping Machine

Model NO.Z33110016

Electric Motor Power (W): 800

Max Tapping Speed (r.p.m): 450

Product Description
Specifications
Optional Parts
Brochure

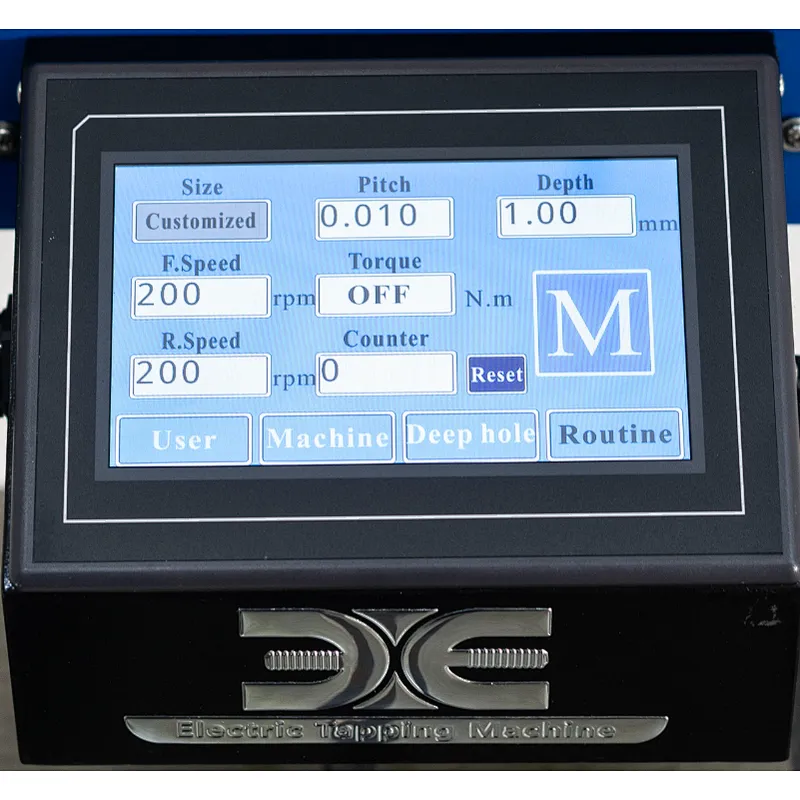

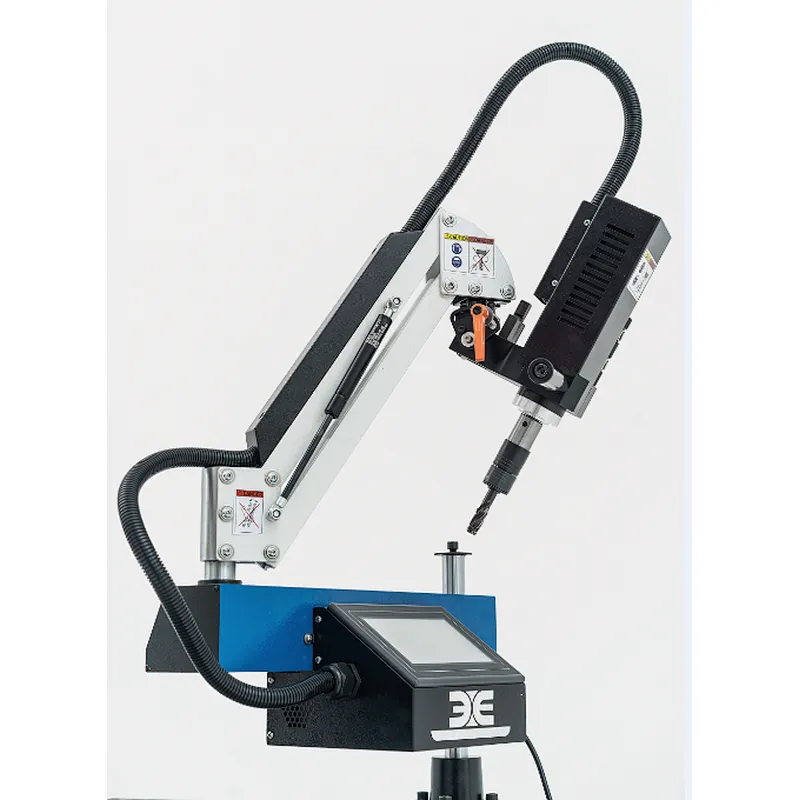

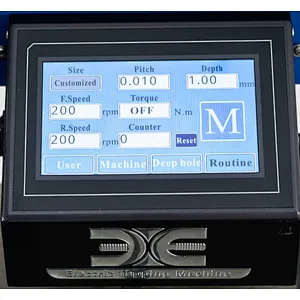

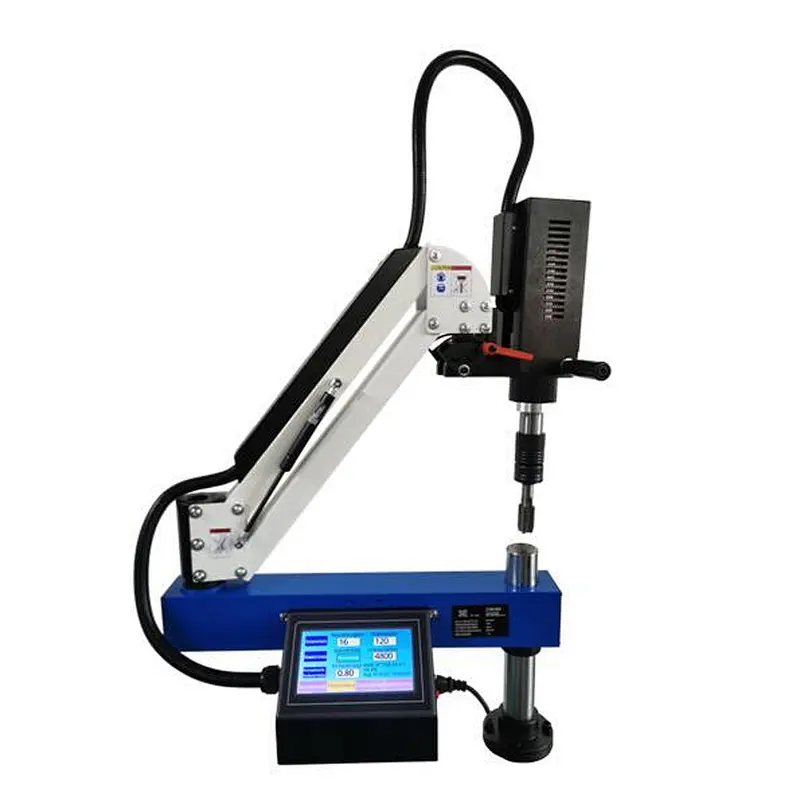

TAIPU® Z type suspended arm is adjustable balance for easy maneuverability, consists of a radial arm joint to a tilting arm balanced by means of a pneumatic spring, it has completely function not only tapping, drilling but also Reaming, Countersinking, Fastening and Chamfering with optional tools, the most complete function arm in the industry with 10"touch screen panel which suits trends nowadays in the metal industry.

Z type 1100 arm for capacity M16 ensure the tap goes all the way through the hole, the arm is also fitted with a depth stop, which will automatically reverse out when it reaches the desired depth. Tapping small holes can be a challenge. You are guaranteed to break taps whether you tap by hand, with a cordless drill, or in a CNC machine. However L33110016 makes tapping easy, and is the best tool when it comes to small hole tapping to go with blind or through hole in various speeds.

Main Features of Z33110016

Maximum tapping speed from 0-450 r.p.m which is large range of adjustment of tapping speed without the use of additional modules and cost.
Besides Manual and Automatic tapping, Deep hole and Consecutive functions are more satisfy multiple and complicated metal working, makes tapping easy and fast.
Thread size has 2 unit of measure, Metric system M or British system inch, is adaptive to all DIN,ISO,JIS and ANSI tap, automatically generate Pitch saving setting time and user-friendly.
djustable torque helps reduce or eliminate tap breakage to save consume of tap
