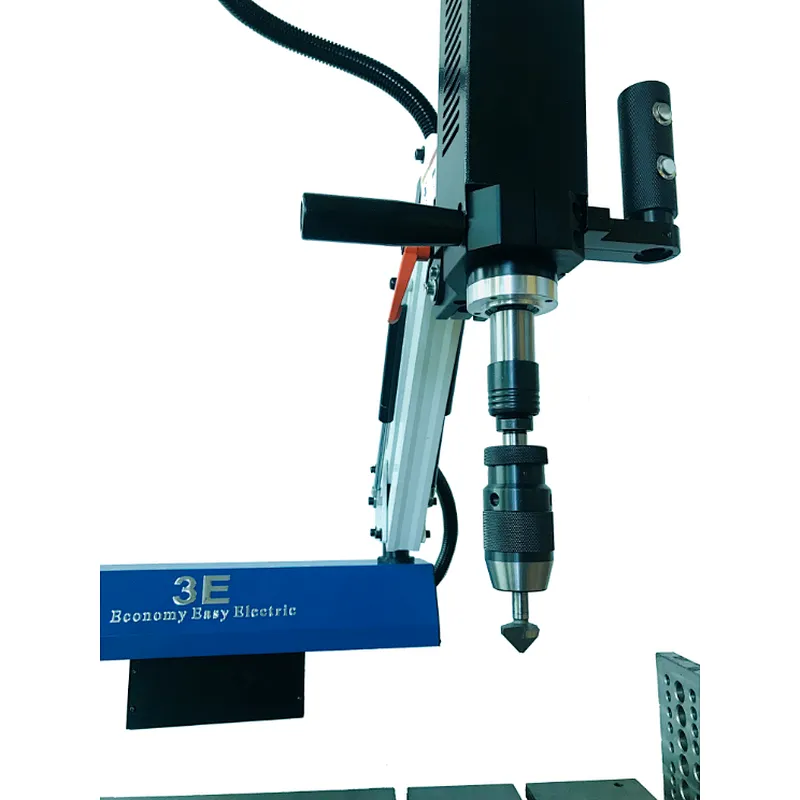

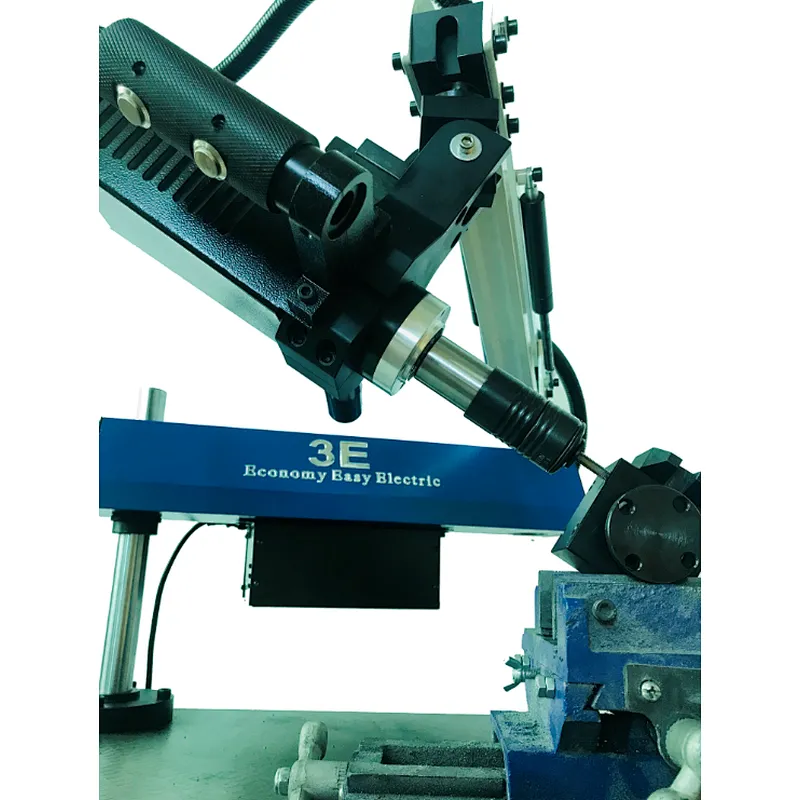

Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Knob Key Panel Pantographic Arm 220V Electric Servo Motor
Model NO.Z32110016 (Z1100-M16 )
Electric Motor Power (W): 800
Max Tapping Speed (r.p.m): 450
  • Product Description
  • Specifications
  • Optional Parts
  • Brochure

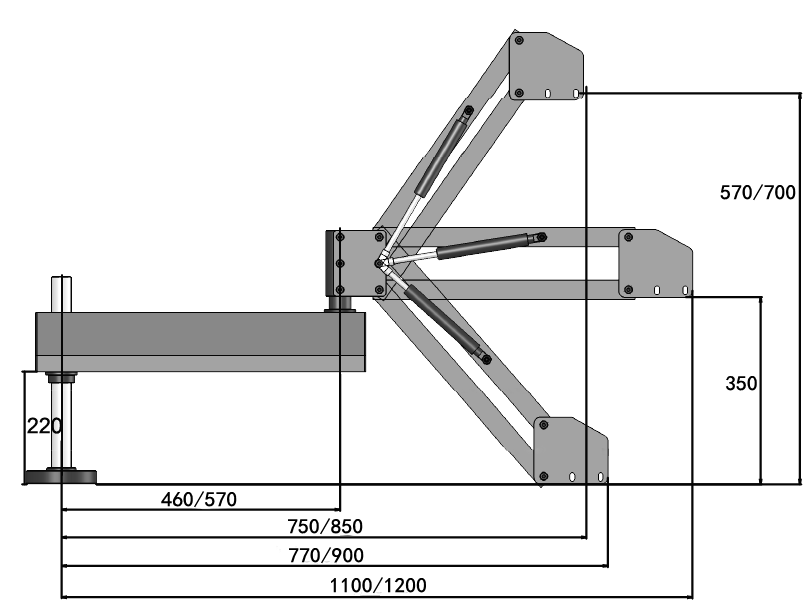

TAIPU® Z type suspended arm is adjustable balance for easy maneuverability, consists of a radial arm joint to a tilting arm balanced by means of a pneumatic spring, it has completely function not only tapping, drilling but also Reaming, Countersinking, Fastening and Chamfering with optional tools, the most complete function arm in the industry .

Capacity M16 ensure the tap goes all the way through the blind or through hole, TAIPU® motors are designed, engineered and built for tapping arm with more than 20 years experience manufacturing and servicing tapping arms only, high frequency, low noise electric motor uses 10x less energy than pneumatic tapping. You are guaranteed to break taps whether you tap by hand, with a cordless drill, or in a CNC machine. However Z32110016 makes tapping easy, and is the best tool when it comes to small hole tapping to go with blind or through hole in various speeds.

Main Features of Z32110016

  • Maximum tapping speed from 0-450 r.p.m which is large range of adjustment of tapping speed without the use of additional modules and cost.
  • Besides Manual and Automatic operation mode, Human-Simulating mode is particular for hard material, more satisfy multiple and complicated metal working, makes tapping easy and fast, saving setting time and user-friendly.
  • Adjustable torque helps reduce or eliminate tap breakage to save consume of tap.

Z32110016 (Z1100-M16 )
